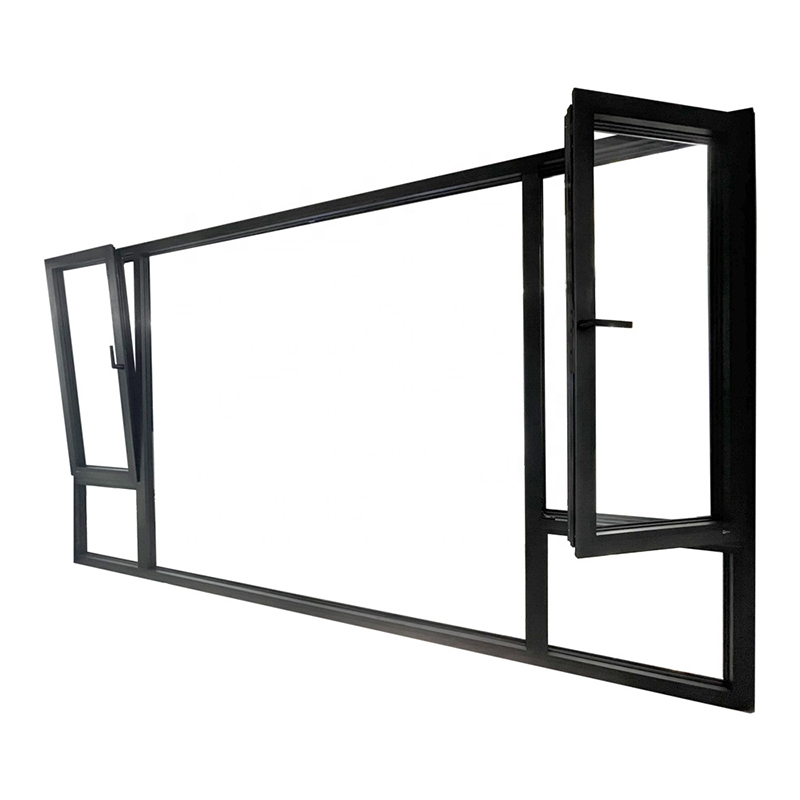

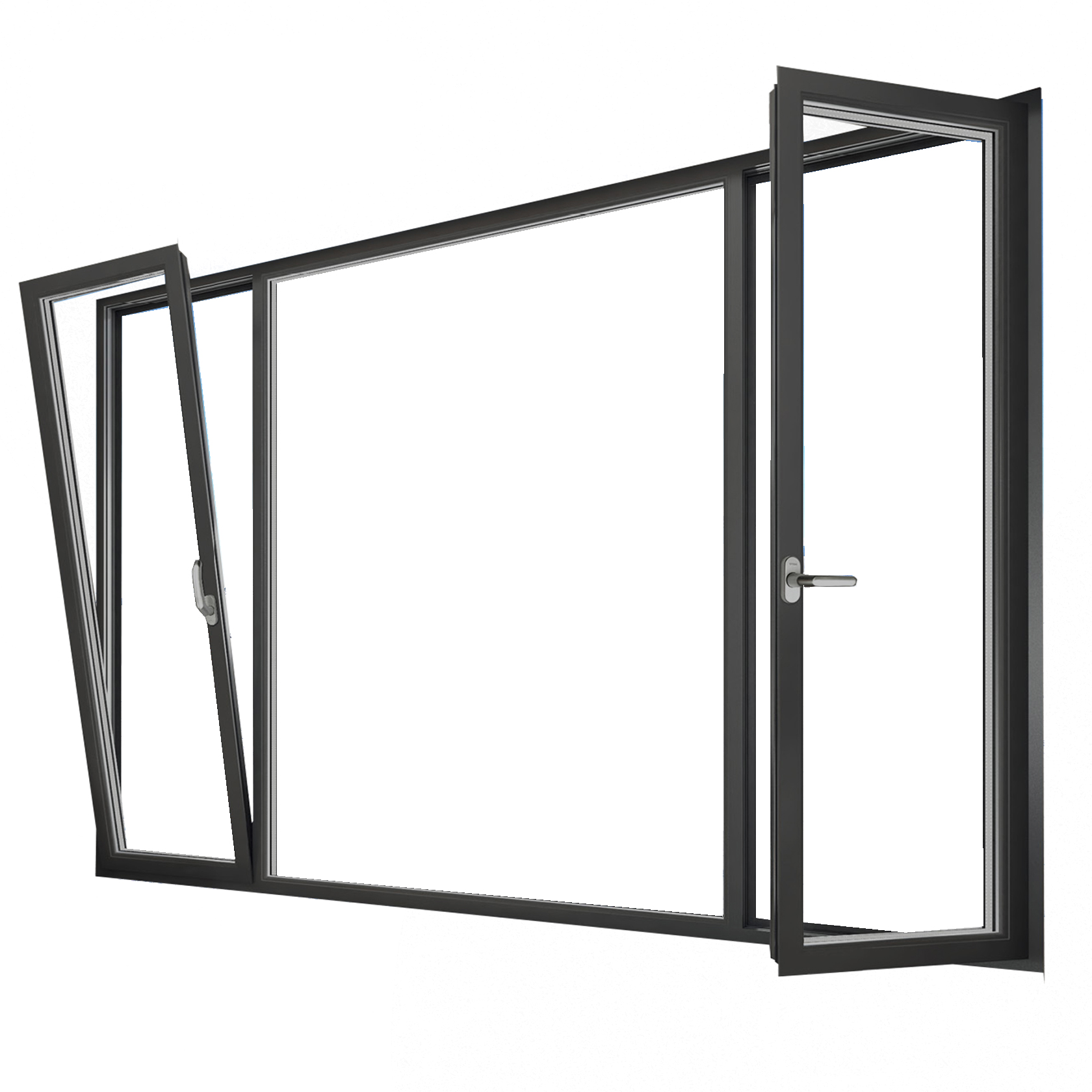

Tilt turn window

also known as dual-turn windows or dual-function windows, are a type of window design that offers multiple opening functions for increased versatility and convenience.It likes a secure top-venting hopper in the tilt position, an inward-opening casement in the turn position, and a tightly-sealed fixed window when closed. Tilt turn windows are high-performance inswing windows that allow for large sizes than typical casement windows.

Why choose it?

Ventilation & Security

The tilt function allows the window to be opened slightly from the top. This provides controlled ventilation while maintaining security and/or preventing rain from entering the room during mild weather.

Easy Cleaning

The turn function makes it easy to clean exterior surfaces from the interior of your home.

Energy efficient

A special triple gasket seal provides optimal compression and performance against sound, air and water infiltration.The insulation helps to reduce the amount of energy needed to heat and cool the home, saving money on energy costs.

Beautiful

The design of flush sash allow the sash to sit flush in the frame which make this window have a sleek and modern appearance, contributing to the overall aesthetic of your space.

Series

X70 Premium Business Series

Aluminum Thermal-Break Windows
Frame Depth: 70mm(2-3/4 inches)
Material: Extruded aluminum prime billet EU 6060-T66
Profile Thickness: 1.8mm
Guide:Apartment, Commercial building

X76 Villa Series

NFRC certified Aluminum Thermal-Break Windows
AAMA Rating: LC-PG50
Frame Depth: 76mm(2-63/64 inches)
Material: Extruded aluminum prime billet EU 6060-T66
Profile Thickness: 1.8mm
Guide:Residential building, Commercial building

S8520 Slimline Series

Aluminum Thermal-Break Windows
Frame Depth: 85mm(3-11/32 inches)
Material: Extruded aluminum prime billet EU 6060-T66
Profile Thickness: 2.0mm
Guide:Luxury home

S9820 Integrated Insect Screen Series

Aluminum Thermal-Break Window with built-in screen
Frame Depth: 98mm(3-55/64inches)
Material: Extruded aluminum prime billet EU 6060-T66
Profile Thickness: 2.0mm
Guide:Luxury home

101 Passive series

Aluminum Thermal-Break Windows
Frame Depth: 101mm(3-31/32 inches)
Material: Extruded aluminum prime billet EU 6063-T5
Profile Thickness: 1.6mm
Guide:Passive house

Finishes

Powder Coating Finish-The durable finish that’s also environmentally-friendly,Suitable for any quantity.

Fluorocarbon Coating Finish-superior to powder coating performance, wear-resistant, weather-resistant, UV-resistant, and not easy to fade, Applicable to orders above 100 square meters.

Exterior Window Color/Interior Window Color Two-Tone Custom Color Capability

LEDOW standard color card and a wide range of RAL colors are available

Hardware

European-Origin hardware such as FSB, SIEGENIA, Sobinco, HOPPE, Roto match your requirements on both durable and elegant.

Chinese hardware is also available as an option.

Glass

Energy Efficiency
We can provide different configurations to meet your U-value and/or Solar Heat Gain Coefficient (SHGC) requirements.
U-value represents how well a window insulates by measuring how quickly heat from hot air can pass through the glass.In all cases, windows with good insulation will help boost the comfort of the home. The lower the U-value, the better at keeping unwanted heat or cold out.
Windows with lower SHGC ratings cut down solar radiation significantly, resulting in lower cooling bills and making them great in warmer climates. On the other hand, homes in cool climates can benefit from windows with high SHGC ratings because they allow for greater solar heating.
Insulating glass unit: IGU with aluminium spacer/IGU with warm edge spacer/IGU with thermoplastic spacer
Glass: Double/Triple glazing with one/two panel Lowe 1/Lowe 2/ Lowe 3 glass and one/two panel Clear glass

Acoustic function
Insulating glass unit: IGU with aluminium spacer
Glass: Double glazing with one panel laminated glass and one panel clear glass

Impact resistant Function
Insulating glass unit: IGU with aluminium spacer
Glass: Double glazing with one panel laminated glass and one panel clear glass

Decorative/Privacy Function
Glass: Tint glass/Laminated glass/Frosted glass/PDLC Smart Glass/Double Glazing With Integral Venetian Blinds

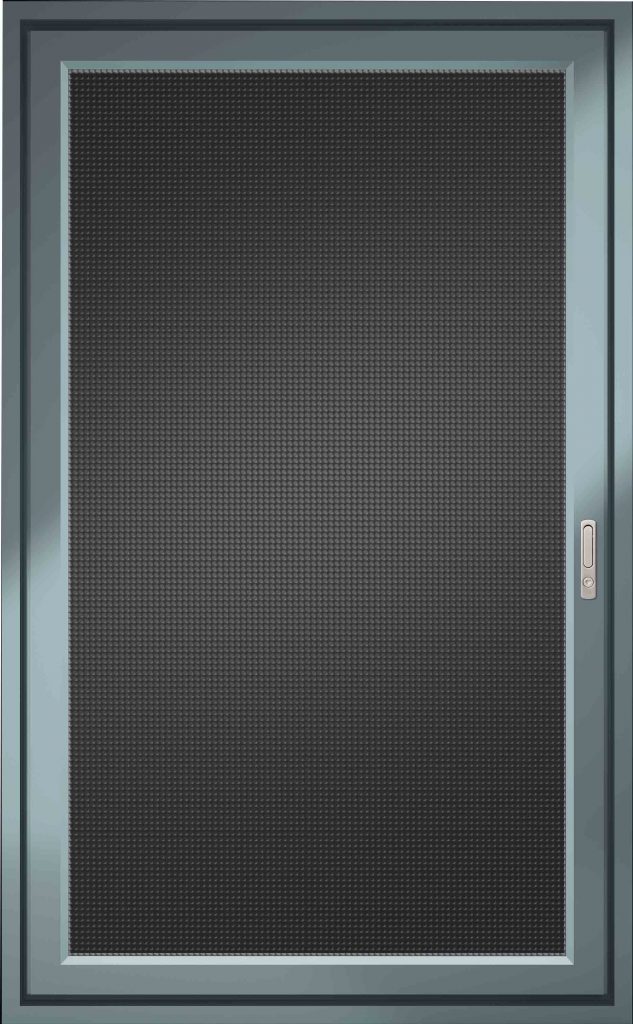

Screens

A standard high-transparency aluminum screen is available in multiple finishes, Can be opened flat and detachable

Mesh:Stainless steel mesh /PET mesh

Grid

There are no rules as to whether you should grill or not grill your windows/doors, below types are available as a custom order

Grills (grids) between the glass/Simulated divided lites/Simulated Divided Lite with Spacer Bar

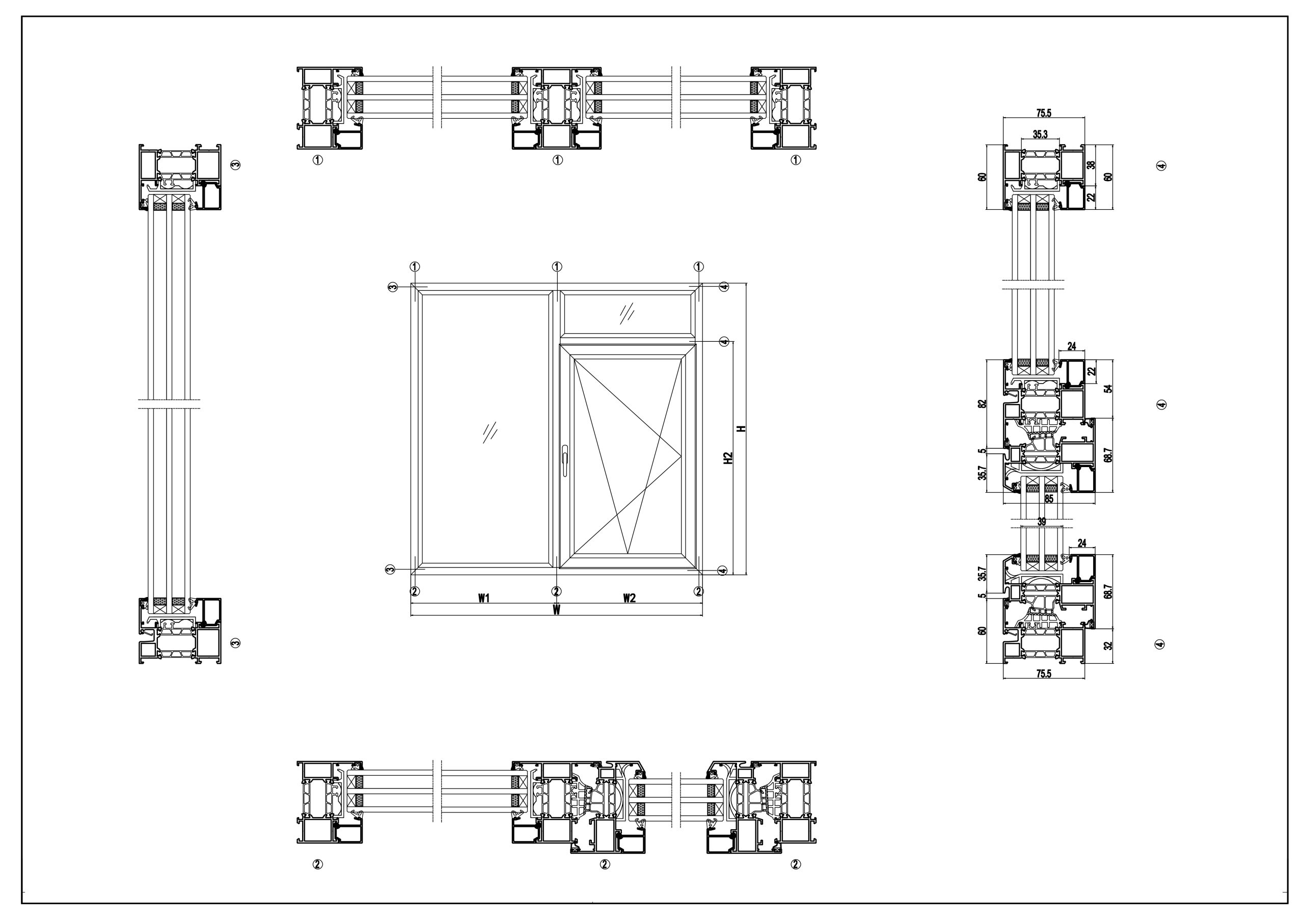

Drawing

Fill in your needs through the form
