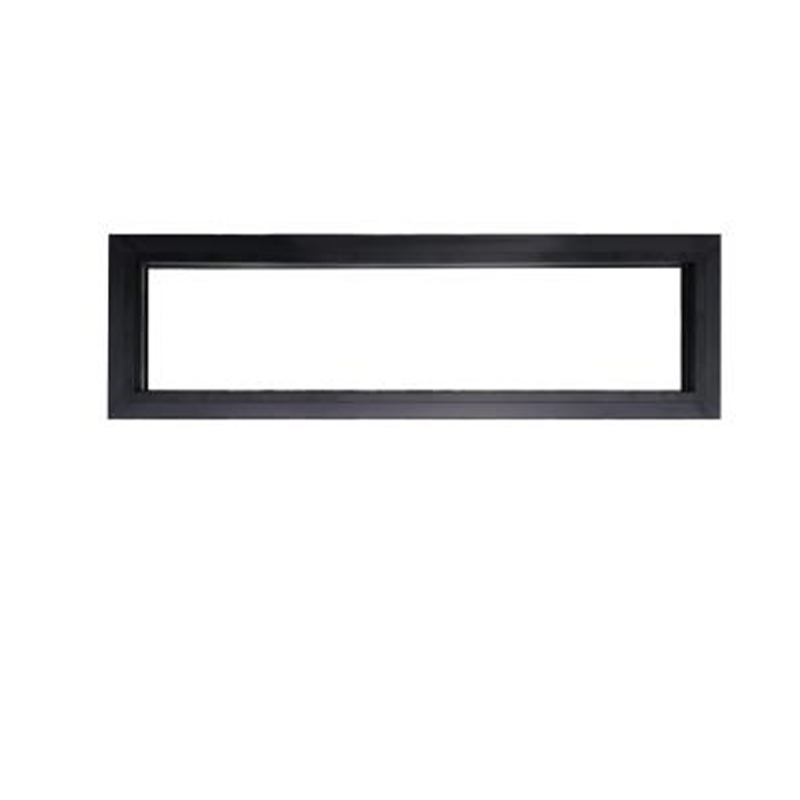

Picture window/Fixed window

also known as fixed windows, are non-operable, meaning they cannot be opened. This makes them offer enhanced security, energy efficiency and allows for larger sizes. This type of window can be assembled with or without a sash.

With thin, low-profile frame, they are often used in areas where an unobstructed view is desired to maximize views and natural light.

Why choose it?

Energy efficient

Picture windows are the cheapest type of windows but they are very effective and useful. They offer high performance against sound, air and water infiltration.The insulation helps to reduce the amount of energy needed to heat and cool the home, saving money on energy costs.

Personality

Besides making your home more beautiful and energy efficient, the shape of the picture windows you choose say a lot about who you are. When you add a specialty shaped picture window to your home, you make it truly yours; it's a reflection of your style.

Series

X70 Premium Business Series

Aluminum Thermal-Break Windows
Frame Depth: 70mm(2-3/4 inches)
Material: Extruded aluminum prime billet EU 6060-T66
Profile Thickness: 1.8mm
Guide:Apartment, Commercial building

X76 Villa Series

NFRC certified Aluminum Thermal-Break Windows
AAMA Rating: LC-PG50
Frame Depth: 76mm(2-63/64 inches)
Material: Extruded aluminum prime billet EU 6060-T66
Profile Thickness: 1.8mm
Guide:Residential building, Commercial building

S8520 Slimline Series

Aluminum Thermal-Break Windows
Frame Depth: 85mm(3-11/32 inches)
Material: Extruded aluminum prime billet EU 6060-T66
Profile Thickness: 2.0mm
Guide:Luxury home

E8518 Flush Sash Series

Aluminum Thermal-Break Windows
Frame Depth: 85mm(3-11/32 inches)
Material: Extruded aluminum prime billet EU 6060-T66
Profile Thickness: 1.8mm
Guide:Residential building, Commercial building

101 Passive series

Aluminum Thermal-Break Windows
Frame Depth: 101mm(3-31/32 inches)
Material: Extruded aluminum prime billet EU 6063-T5
Profile Thickness: 1.6mm
Guide:Passive house

Finishes

Powder Coating Finish-The durable finish that’s also environmentally-friendly,Suitable for any quantity.

Fluorocarbon Coating Finish-superior to powder coating performance, wear-resistant, weather-resistant, UV-resistant, and not easy to fade, Applicable to orders above 100 square meters.

Exterior Window Color/Interior Window Color Two-Tone Custom Color Capability

LEDOW standard color card and a wide range of RAL colors are available

Glass

Energy Efficiency

We can provide different configurations to meet your U-value and/or Solar Heat Gain Coefficient (SHGC) requirements.

U-value represents how well a window insulates by measuring how quickly heat from hot air can pass through the glass.In all cases, windows with good insulation will help boost the comfort of the home. The lower the U-value, the better at keeping unwanted heat or cold out.

Windows with lower SHGC ratings cut down solar radiation significantly, resulting in lower cooling bills and making them great in warmer climates. On the other hand, homes in cool climates can benefit from windows with high SHGC ratings because they allow for greater solar heating.

Insulating glass unit: IGU with aluminium spacer/IGU with warm edge spacer/IGU with thermoplastic spacer

Glass: Double/Triple glazing with one/two panel Lowe 1/Lowe 2/ Lowe 3 glass and one/two panel Clear glass



Acoustic function



Insulating glass unit: IGU with aluminium spacer

Glass: Double glazing with one panel laminated glass and one panel clear glass



Impact resistant Function

Insulating glass unit: IGU with aluminium spacer

Glass: Double glazing with one panel laminated glass and one panel clear glass



Decorative/Privacy Function

Glass: Tint glass/Laminated glass/Frosted glass/PDLC Smart Glass/Double Glazing With Integral Venetian Blinds

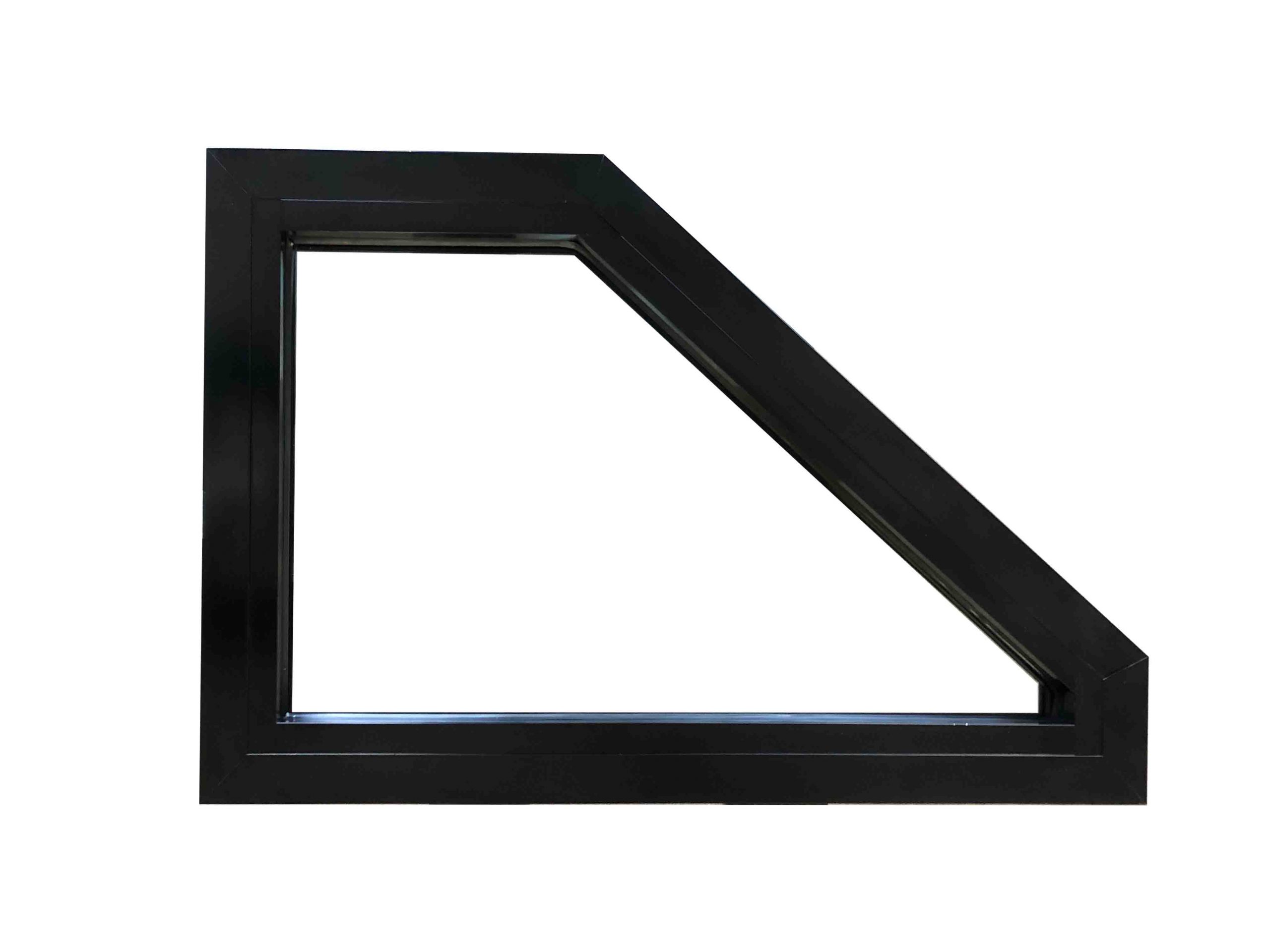

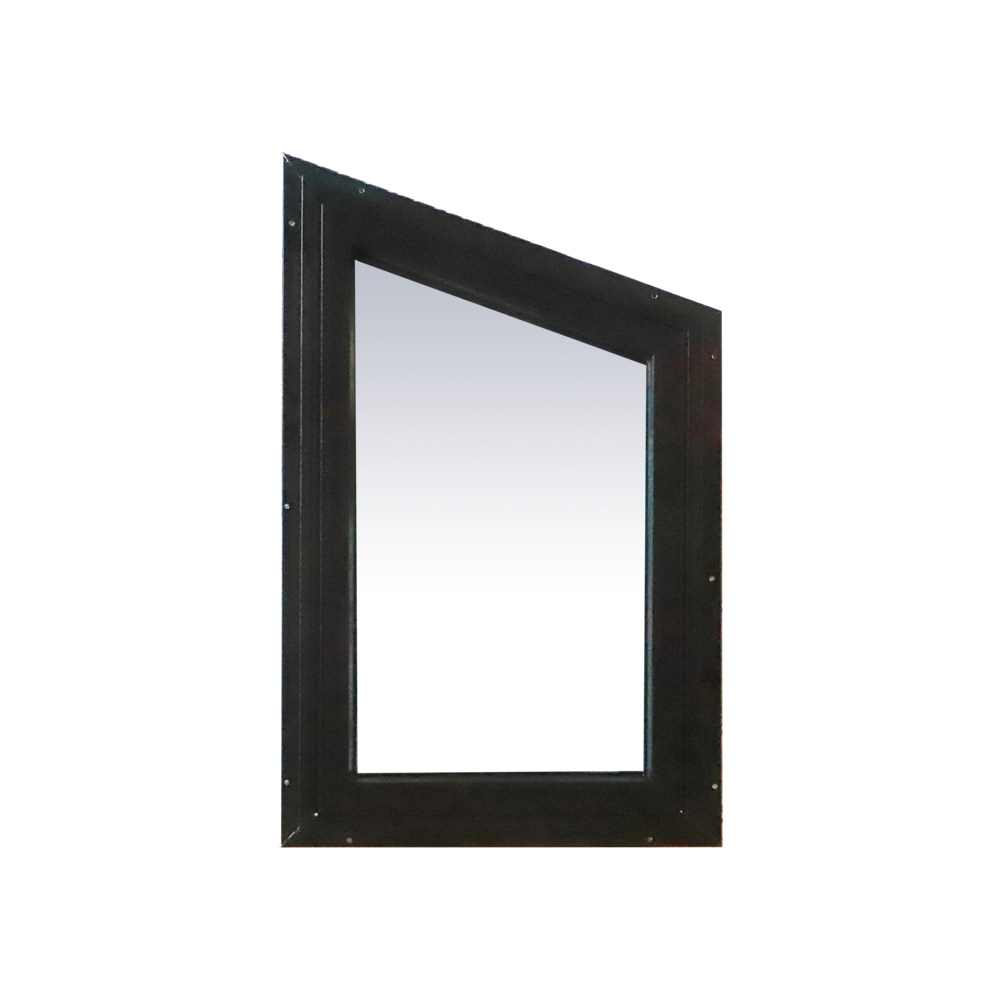

Specialty Shape

From bespoke arched shaped window, round or pentagon window to curved windows, custom triangle windows. Every custom-made geometric shaped window is designed and manufactured to your requirements!They can be paired with standard windows to create even more visual appeal.



Grid

There are no rules as to whether you should grill or not grill your windows/doors, below types are available as a custom order

Grills (grids) between the glass/Simulated divided lites/Simulated Divided Lite with Spacer Bar

Drawing

Fill in your needs through the form
